Steel rollers, Impact rollers, Guide Rollers, Garland rollers

AUTO PACK ROLLERS main products include: Carrying Rollers, Return Rollers, PEHD Rollers, Friction Rollers, Impact Rollers, Spiral Rollers; Rollers for Car Production Line; Various Conveyor Roller Idlers and Steel Brackets; Belt Conveyor. Our products and services are spread over domestic and overseas markets in various industries, such as:  coal, port, mining, steel, power plant, cement, construction, tunnel, car production, light industry, chemical industry, paper-making plant, paper pulp, food, grain, warehousing and logistics, etc.

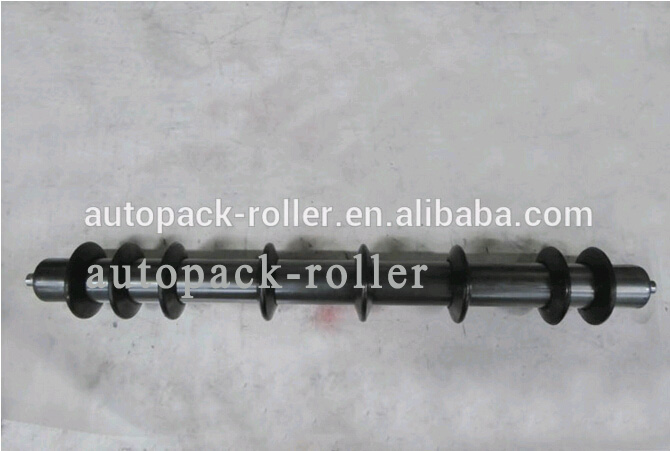

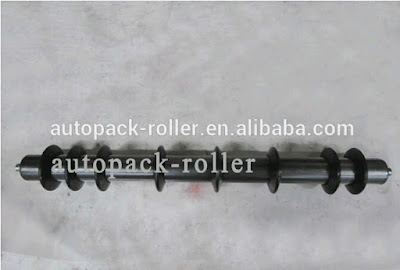

Anti-clogging Rollers

Place of Origin: Guangdong, China (Mainland) Brand Name: AUTO PACK Roller type: Sleeve comb cleaning rollers Bearing type: Deep groove ball bearing A roller used for belt return where the dirty side of the belt is in contact with the shaft. It facilitates the evacuation of clogged fertilizer, clay and laterite materials and prevents  their accumulation which can harm the functioning of the installation. For difficult applications, the plastic diagonal braces are in fact beneficial and for wide belts the edge supports with  sleeves are advised.

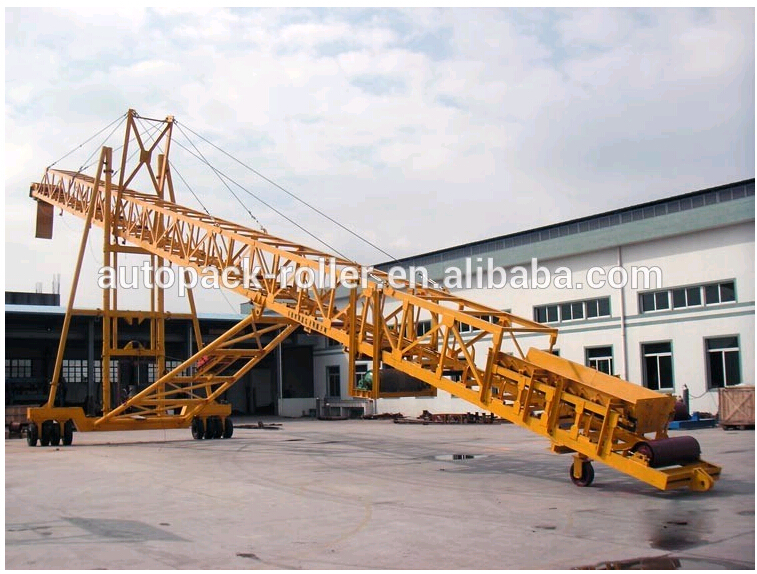

Movable Ship loader belt conveyor, conveyor for sea port handling

http://www.alibaba.com/product-detail/Movable-Ship-loader-belt-conveyor-conveyor_60471506968.html Place of Origin: Guangdong, China (Mainland)Brand Name: AUTO PACKLifting angle: 10-22 degreeLoad Capacity: 50-165t/hColor: Blue, yellow as you likeApplication: Port&wharf materials handling Packaging: Ship loader conveyor Packing: Polywood cases Movable Ship loader belt conveyor, conveyor for sea port handling Movable and liftable belt conveyor is a constant handling facility, with the characteristics of high working efficiency, convenient operation and good mobility. The height can be adjusted within the permissible height adjustment. The application of Movable Ship loader belt conveyor, conveyor for sea port handling The movable and liftable belt conveyor is mainly used in those places which the conveying and handling sites are flexible. It’s widely used in port, wharf, vehicle stations, warehouse, cement sites, coal mine, quarry, farm those short conveying distance of bulk materials handling.

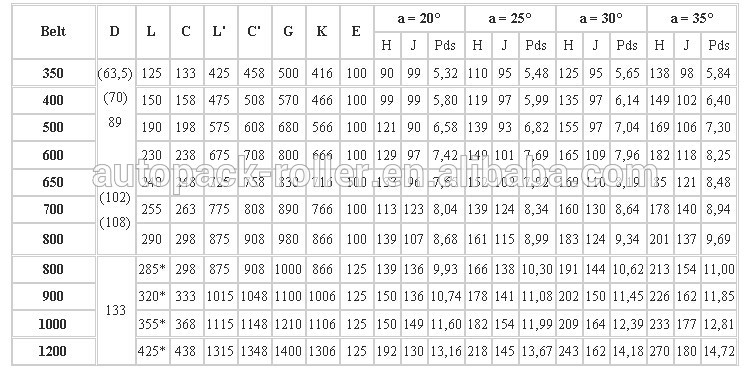

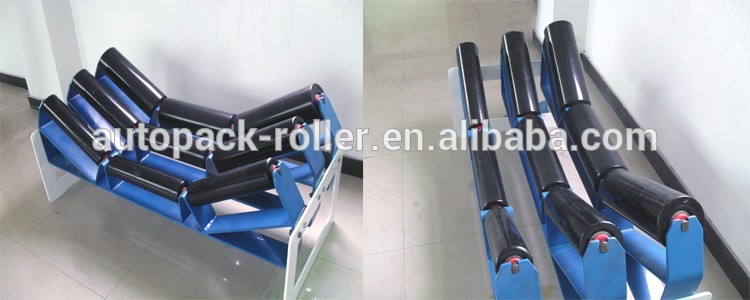

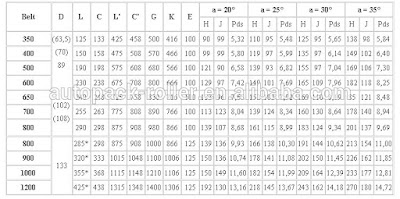

Trough Rollers Idler, trough angle 20/30/35/40

     Trough Rollers Idler, trough angle 20/30/35/40



An introduction of Auto Pack(Dongguan) Conveying Equipment Co.,Ltd.

 AUTO PACK ROLLERS main products include: Carrying Rollers, Return Rollers, PEHD Rollers, Friction Rollers, Impact Rollers,Spiral Rollers; Various Conveyor Roller Idlers and Steel Brackets; Rollers for Car Production Line; Belt Conveyor.And our products and services spread over domestic and overseas metallurgy industry, electric power industry, port industry,construction sites, food industry, paper industry,etc.

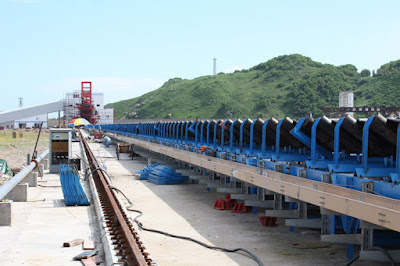

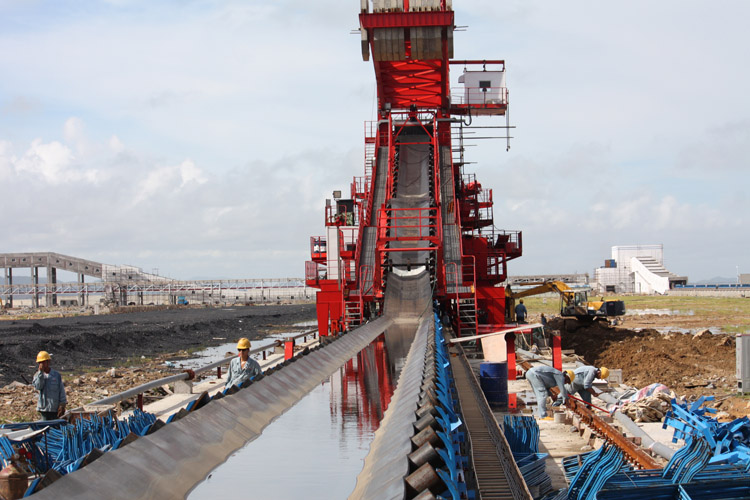

                                Application of Auto Pack Trough Rollers Idler

Contact us

Bulk roller idler for conveyor belting, bulk product handling rollers

Bulk roller idler for conveyor belting, bulk product handling rollers

Technical Prameters of AUTO PACK Impact Rollers Idler

Tube finish

Finishing by machining

Rubber-based surfaces

Anti-corrosion protection

Remark: Having seen the evolution of the legislation for ground protection against pollution, we advise the constructors and users either to check the compatibility of used paints with the applicable texts or to use non-painted rollers. In order to minimize risks, AUTO PACK uses paints without heavy metals.

Sealing system

The usage of rollers touches all the areas of conveying bulk products because the belt conveyor is often the most rational choice and the most economical in terms of power. Sealing, while remaining very economical and with weak resistance to rolling, must odder an efficient protection in the most diverse conditions.

Our sealing system M+ was developed yo respond to the majority of everyday work. Coupled with an appropriate choice of grease, it offers a mechanism which is amongst the most efficient on the market.

An brief introduction of Auto Pack(Dongguan) Conveying Equipment Co.,Ltd.

 AUTO PACK ROLLERS main products include: Carrying Rollers, Return Rollers, PEHD Rollers, Friction Rollers, Impact Rollers,Spiral Rollers; Various Conveyor Roller Idlers and Steel Brackets; Rollers for Car Production Line; Belt Conveyor.And our products and services spread over domestic and overseas metallurgy industry, electric power industry, port industry,construction sites, food industry, paper industry,etc.

Contact us

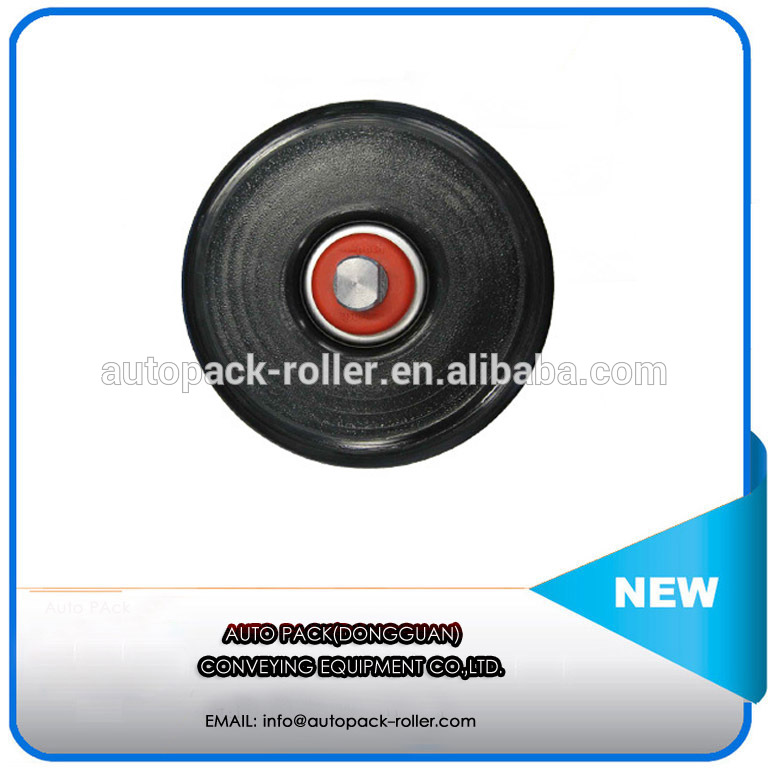

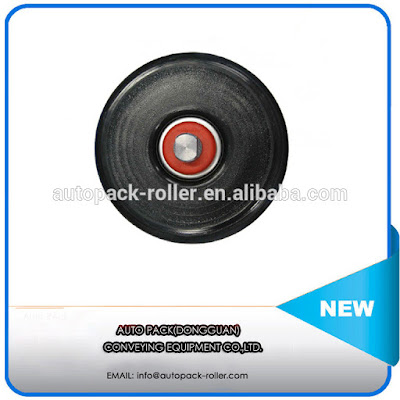

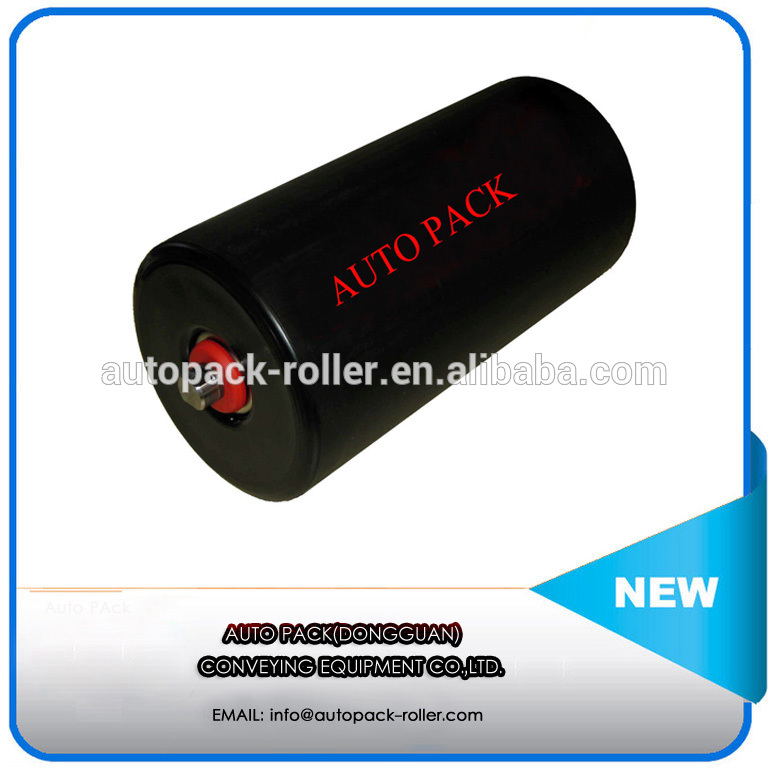

What's PEHD Roller for Conveyor?

PEHD Rollers, the main material is High Density Polyethylene Specifications.

PEHD Rollers is an updated roller of normal steel rollers, which is widely used those dusty and strong corrosive applications, such as mines, ports&wharf, power plant, steel factory,cement mill, coking plant, alkali industry, chemical fertilizer factory, and etc.

Specifications of PEHD Rollers

Ø Tube	Ø Shaft	Bearing	Max Speed m/s
90x8.2	20	6204	1.5
110x10	20	6204	1.5
133x10	20	6204	2.2
133x10	25	6305	2.2
133x10	30	6206	2.2
140x12.5	20	6204	2.2
160x14	25	6305	2.7
160x14	30	6206	2.7

Steel rollers for metallurgy conveyor
